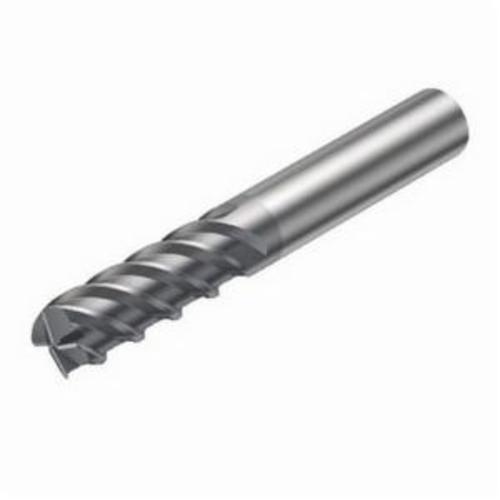

Sandvik Coromant 5742498 CoroMill® Plura End Mill, 0.629 in Dia Cutter, 1.417 in Length of Cut, 4 Flutes, 0.629 in Dia Shank, 3.622 in OAL, PVD Coated
Orig$443.32
Sale$265.99
Item #SAN 5742498
BrandSandvik Coromant
ManufacturerSandvik Coromant
Mfr. Model #5742498
Ship Weight (lbs.)0.5
UnitEA
Items Left in Stock5
AvailabilityIn-Stock
Quantity
All clearance sales final. No warranty or replacements.
Order By 2:30pm To Receive Next Day (Local Delivery Only)
Product Features
- • 1620 manufacturer grade
• 4 face effective cutt edge
• 30.29 deg cutting edge
• Straight chip breaker
• 12.8 mm Dia core at face
• 36 mm L body
• Without coolant entry
• 2 deg minor cutting edge
• No coolant exit
• 6.2 mm Dia cutting face contact
• SFW (EFW) feed direction
• Right helix flute hand
• -18 deg radial rake
• 6 deg axial rake
• 36 mm L usable
4 maximum regrinds
• 44 mm overhang
• 500 um minimum Rz roughness value on the face
• 2 mm corner radius
• 5 deg ramping
Description
Sandvik Coromant End Mill, Series: CoroMill® Plura, 0.629 in Diameter Cutter, 3.622 in Overall Length, 1.417 in Length of Cut, 4 Flutes, 0.629 in Shank Diameter, Right Hand Cutting Direction, 50 deg Helix Angle, Cylindrical Shank, ANSI Code: R215.H4-16050EAC10P 1620, ISO Code: R215.H4-16050EAC10P 1620, Solid Carbide, PVD Coated
