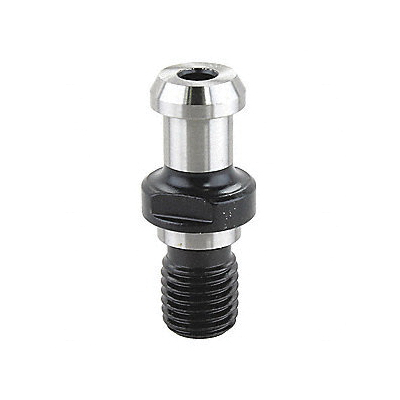

Lyndex-Nikken C40S-4500 JIS Style Retention Knob/Pull Stud, 5/8-11 Thread, 45 deg, 0.59 in Dia Knob, CAT40 Taper, 2-1/4 in OAL
Price$25.45
Item #LYXC40S4500
BrandLyndex-Nikken
ManufacturerLyndex-Nikken
Mfr. Model #C40S-4500
Ship Weight (lbs.)0
UnitEA
AvailabilityCall for Availability
Quantity
Product Features
- • Class 3A UNC thread
• Magnetic particle crack tested
• Tensile and shear requirements per ISO and JIS standard
• All locations that make contact with ground spindle mechanism components are ground or hard turned
• Base of pullstud flange is ground to assure perpendicular alignment between pullstud and taper of toolholder
• Tight pitch diameter tolerance helps maintain accurate concentricity between threads and knob limiting the expansion or flaring of the small end of the taper
Description
Lyndex-Nikken Retention Knob/Pull Stud, JIS Style, Series: T-Max® P, 5/8-11, 45 deg, 0.59 in Knob Dia, CAT40 Taper, 0.393 in Neck Dia, 2-1/4 in Overall Length, 0.236 in Flange Thickness, 0.99 in Flange to Angle Length, 1.26 in Flange to Knob Length, No Through Coolant (Yes/No)
