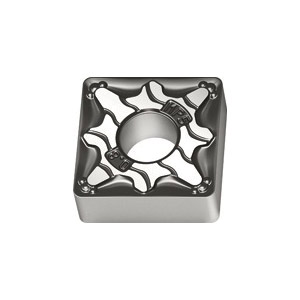

Walter 6249953 Tiger-tec® Silver Turning Insert, ANSI Code: SNMG432-MP5 WPP20S, SNMG Insert, Material Grade: P, 432 Insert, Squared Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: WPP20S
Orig$13.33
Sale$8.00
Item #WAU 6249953
BrandWalter
ManufacturerWalter
Mfr. Model #6249953
Ship Weight (lbs.)0.001
UnitEA
Items Left in Stock20
AvailabilityIn-Stock
Quantity
All clearance sales final. No warranty or replacements.
Order By 2:30pm To Receive Next Day (Local Delivery Only)
Product Features
- • Universal geometry for steel materials
• Reinforced chipbreaker blades
• Extremely wide range of applications
• Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times
• Mechanical post-treatment - unique residual stress rate, increased process reliability
• Large, universal chip breaking area and longer tool life for ISO P geometries
• Ground seating surface after coating for improved process reliability when working with interrupted cuts
• Silver flank face indicator layer for extremely easy wear detection
• Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation
• Extremely smooth rake face for excellent tribochemical wear resistance
Description
Walter Turning Insert, Series: Tiger-tec® Silver, SNMG Insert, 432 Insert, Squared, 5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.7 mm Width, 12.7 mm Length, 12 Seat, Negative Rake, MP5 Chipbreaker, 0.8 mm Corner Radius, 5.16 mm Hole Dia, Manufacturer's Grade: WPP20S, ANSI Code: SNMG432-MP5 WPP20S, ISO Code: SNMG120408-MP5 WPP20S, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel
