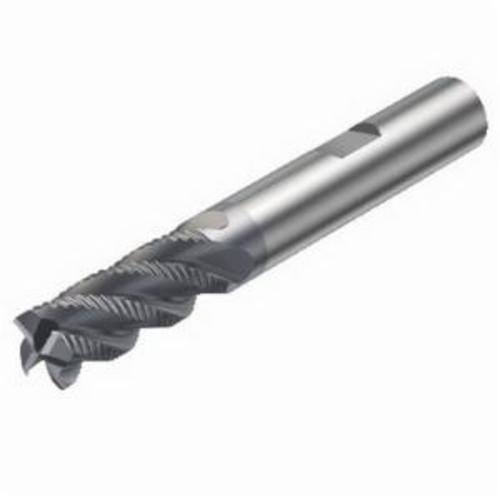

Sandvik Coromant 5743259 CoroMill® Plura Square Shoulder End Mill, 0.629 in Dia Cutter, 1.259 in Length of Cut, 4 Flutes, 0.629 in Dia Shank, 3.622 in OAL, PVD Coated
Orig$487.98
Sale$292.79
Item #SVK24877
BrandSandvik Coromant
ManufacturerSandvik Coromant
Mfr. Model #5743259
Ship Weight (lbs.)1
UnitEA
Items Left in Stock1
AvailabilityIn-Stock With Limited Quantity
Quantity
All clearance sales final. No warranty or replacements.
Product Features
- • 1640 manufacturer grade
• 14.2 mm H shank
• 1.6 mm maximum working engagement
• 1 maximum working engagement ratio
• Interrupted edge property
• Center cutting capability
• 8.8 mm Dia core at face
• L cutting length
• Without coolant entry
• No coolant exit
• 15.2 mm Dia cutting face contact
• SFW (EFW) feed direction
• Right helix flute hand
• 10.5 deg radial rake
• 13.5 deg axial rake
32 mm L usable
• 4 maximum regrinds
• 44 mm overhang
• 0.4 mm corner radius
• 90 deg y-axis rot
Description
Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill® Plura, 0.629 in Diameter Cutter, 3.622 in Overall Length, 1.259 in Length of Cut, 4 Flutes, 0.629 in Shank Diameter, Right Hand Cutting Direction, 40 deg Helix Angle, Weldon Flat Shank, ANSI Code: R216.34-16040-BC32K 1640, ISO Code: R216.34-16040-BC32K 1640, Solid Carbide, PVD Coated
