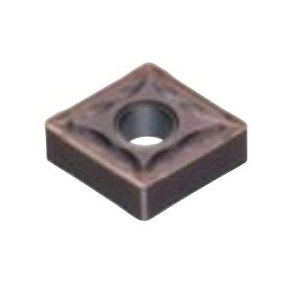

SUMITOMO CNMG643EMU-AC830P Turning Insert, ANSI Code: CNMG643EMU-AC830P, CNMG Insert, Material Grade: P, 643 Insert, Diamond Shape, 19 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: AC830P
Orig$23.39
Sale$14.03
Item #SUMCNMG643EMUAC830P
BrandSUMITOMO
ManufacturerSumitomo Electric Industries
Mfr. Model #CNMG643EMU-AC830P
Ship Weight (lbs.)0.02
UnitEA
Items Left in Stock10
AvailabilityIn-Stock
Quantity
All clearance sales final. No warranty or replacements.
Order By 2:30pm To Receive Next Day (Local Delivery Only)
Product Features
- • AC830P grade stable long life grade employs special tough, carbide substrate and super FF coated
• Improves on P30 grade fracture resistance and approaches P20 grade in terms of wear resistance
Description
SUMITOMO Turning Insert, CNMG Insert, 643 Insert, Diamond, 3/4 in Inscribed Circle, 1/4 in Thickness, 19 Seat, Negative Rake, EMU Chipbreaker, 0.0469 in Corner Radius, 0.3126 in Hole Dia, Manufacturer's Grade: AC830P, ANSI Code: CNMG643EMU-AC830P, ISO Code: CNMG190612N-MU-AC830P, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-Super FF Coated, Material Grade: P, For Use On: Steel
