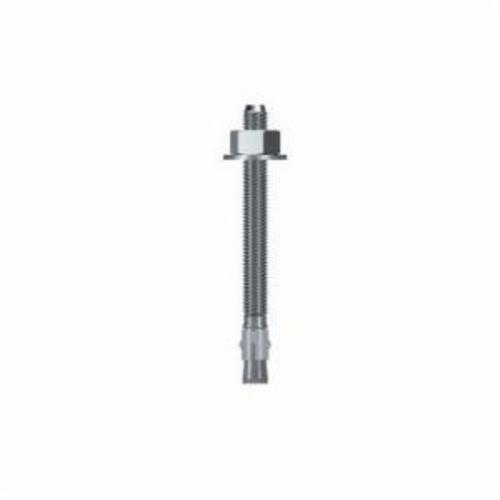

Product Features

• • Code listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
  • One-piece, wrap-around clip ensures uniform holding capacity
  • Threaded end is chamfered for ease of starting nut
  • Available in a wide range of diameters and lengths
  • Carbon steel ASTM A563 grade A nut
  • The minimum concrete thickness is 1-1/2 times the embedment depth
  • The allowable loads are based on a safety factor of 4
  • 9/16 in minimum fixture hole
  • 60 ft-lb installation torque
  • 3280 lb at 2000 psi/5280 lb at 4000 psi ultimate tension loads and 820 lb at 2000 psi, 1360 lb at 4000 allowable tension loads for concrete
  • 6560 lb at 2000 psi ultimate and 1345 lb at 2000 psi, 1485 lb at 3000 psi, 1625 lb at 4000 psi allowable shear loads for concrete
  • Anchor body material meets minimum 70000 psi tensile strength
