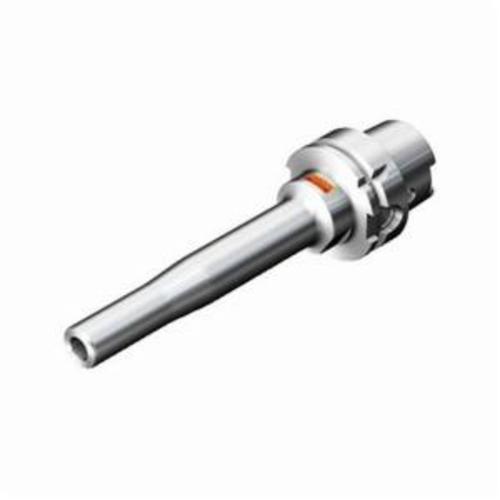

Sandvik Coromant 6255541 CoroChuck™ 930 High Precision Pencil Design Hydraulic Tool Holder and Chuck, HSK Shank, HA10 Connection, 0.787 in Dia Hole, 1.26 in Dia Nose, 6.693 in Projection
Price$2,308.26
Item #SAN 6255541
BrandSandvik Coromant
ManufacturerSandvik Coromant
Mfr. Model #6255541
Ship Weight (lbs.)1
UnitEA
AvailabilityCall for Availability
Quantity
Product Features
- • Best pull out security on the market thanks to the latest Fulcrum technology used for uppermost clamping performance with high clamping force, the clamping force ensures repeatability, time after time
• Easy handling with torque wrench used for secure clamping
• The machine side coupling is ground as the last operation to guarantee the highest demands on precision
• Precision run out <4 umm (157 uminch) at 2.5XDC
• High precision repetition
• Balancing according to DIN 69888
• Clamping length can be adjusted with an adjustment screw
• High metal removal rate provides increased productivity
• Secure process and safe machining
• Quick tool change and setup
• Enhanced surface finish and increased tool life
• Close hole tolerance
Description
Sandvik Coromant Hydraulic Tool Holder and Chuck, High Precision Pencil Design, Series: CoroChuck™ 930, HA10 Connection, HSK Shank, 3.937 in Taper, 0.787 in Diameter Hole, 1.26 in Diameter Nose, 6.693 in Projection, 1.614 in Clamping Depth, 8.661 in Overall Length, System Size Machine Side: HA10, ANSI Code: 930-HA10-P-20-170, ISO Code: 930-HA10-P-20-170, Yes Through Coolant
