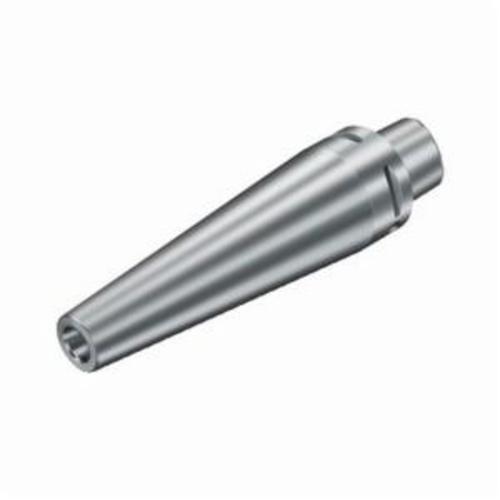

Sandvik Coromant 6070086 Coromant Capto® Shrink Fit Adapter, Modular Connection Shank, C5 Machine Side

* Image may not reflect actual product

Price$1,090.62

Item #SAN 6070086

Mfr. Model #6070086

Ship Weight (lbs.)1

UnitEA

AvailabilityCall for Availability

Quantity

Sandvik Coromant Shrink Fit Adapter, mm Adjustment Range 20, mm Projection 28, mm Suitable For Use With 146, mm Clamping Length 50, mm ANSI Code 41

ANSI Code	C5-391.19-20 146
Body Diameter Workpiece Side	50 mm
Clamping Length	41 mm
Hole Diameter	20 mm
ISO Code	C5-391.19-20 146
Nose Diameter	28 mm
Projection	146 mm
Series	Coromant Capto®
Shank Type	Modular Connection
Suitable For Use With	6762803, 6762804, 6762805 Solid Carbide Drills, 6259435, 6259472, 5743560 Solid Carbide Ball Nose End Mills and 6266815, 6266816, 6266877 Solid Carbide Reamers
System Size Machine Side	C5
Through Coolant (Yes/No)	Yes
