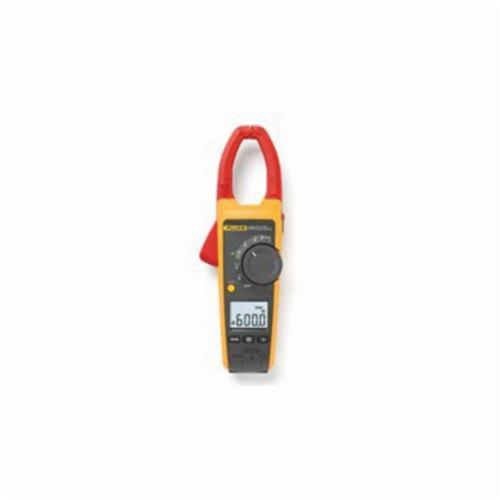

Fluke® FLUKE-374 True RMS AC/DC Clamp Meter, 600 A 600 VAC/VDC, 6000 Ohm, 34 mm Jaw, Backlit Display

Orig$474.98

Sale$284.99

Item #FLK 374 FC

BrandFluke®

ManufacturerFluke

Mfr. Model #FLUKE-374

Ship Weight (lbs.)1

UnitEA

Items Left in Stock1

AvailabilityIn-Stock With Limited Quantity

Quantity
Login to see discount pricing.
Not Registered? Create an
 Account

All clearance sales final. No warranty or replacements

Order by 4pm to receive next day

Product Features

  • • IFlex™ flexible current probe (sold separately) expands the measurement range to 2500 A ac while providing increased display flexibility/ability to measure awkward sized conductors and improved wire access
    • CAT IV 600 V/CAT III 1000 V
    • Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
    • Ergonomic design fits in your hand and can be used while wearing personal protective equipment
    • Large/easy to read backlight display automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement
    • Soft carrying case
    • Offers improved performance perfect for many current measurement situations
    • Accuracy - 2% +/- 5 digits dc current/1.5% +/- 5 digits (20 - 500 Hz) ac voltage/1% +/- 5 digits dc voltage/ 1% +/- 4 digits capacitance
    • Resolution - 0.1 A ac current via jaw/0.1 A (= 600 a)/1 A (= 2500 a) AC current via flexible current probe/0.1 A dc current/0.1 V ac voltage/0.1 vdc voltage/0.1 uF (= 100 uF)/1 u f (= 1000 uF) capacitance
    • 3000 m operating altitude/12000 m storage altitude
    • 7.5 mm flexible current probe diameter
    • 1.8 m flexible current probe cable length (head to electronics connector)
    • Add 0.1 x specified accuracy for each degree C above 28 deg C or below 18 deg C temperature coefficients
    • 3 at 500 A (375 and 376 only)/2.5 at 600 A/1.42 at 1000 A (376 only)/add 2% for C.F. > 2 crest factor (50/60 Hz) AC current via jaw
    • 3.0 at 1100 A (375 and 376 only)/2.5 at 1400 A/1.42 at 2500 A/add 2% for C.F. > 2 crest factor (50/60Hz) AC current via flexible current probe
    2500 A measure ac current via iFlex™
    • = 30 Ohm measure continuity
    • 100 mS measure inrush
    • 2% +/- 5 digits (10 - 100 Hz)/2.5% +/- 5 digits (100 - 500 Hz) via jaw/3% +/- 5 digits (5 - 500 Hz) via flexible current probe current accuracy, 1.5% +/- 5 digits AC voltage/1% +/- 5 digits DC voltage accuracy
