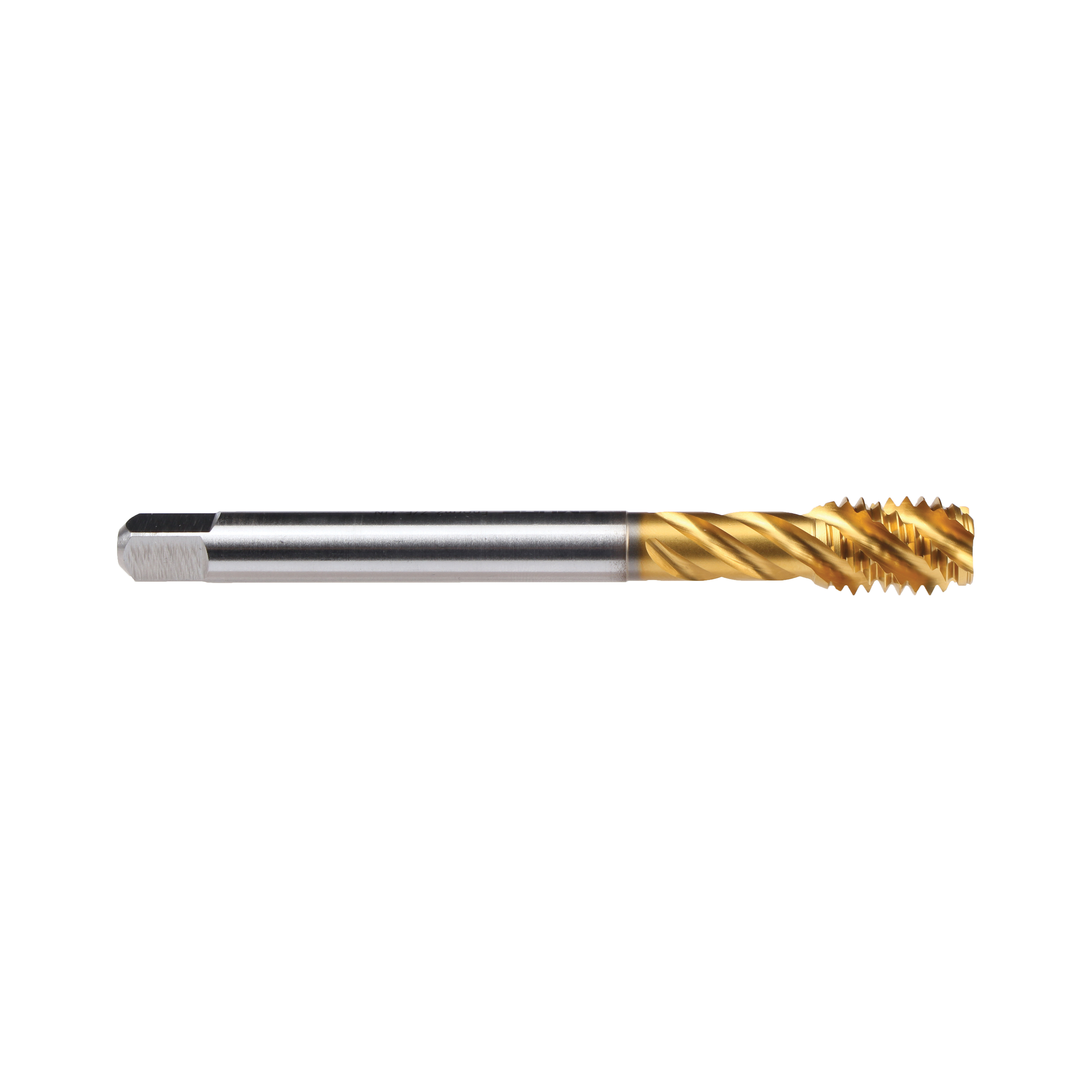

Emuge AU513700.5013 Enorm Z/E AU513700 Form E Fast Reduced Shank Spiral Flute Tap, Right Hand Cutting, 1/2-13 Thread, Bottoming Chamfer, Right Hand Flute Direction, 4 Flutes, TiN Coated, HSS-E
Price$142.60
Item #EMU AU5137005013
BrandEmuge
ManufacturerEmuge
Mfr. Model #AU513700.5013
Ship Weight (lbs.)0.13
UnitEA
AvailabilityCall for Availability
Quantity
Product Features
- • The fast spiral flute (45 deg) provides good chip removal from blind holes
• Z designates a tool design for CNC controlled machines with synchronous feed control
• Manufactured to produce a 3B tolerance thread forms
• ANSI/ANSI standard dimensions on overall length and shank size
• Taps with ANSI standard overall length dimensions are shorter than taps made to DIN standards
• TiN coated for additional tool life
Description
Emuge Spiral Flute Tap, Form E Fast Reduced Shank, Series: Enorm Z/E AU513700, Measurement System: Imperial, UNC Thread Standard, 1/2-13 Thread, Bottoming Chamfer, 4 Flutes, HSS-E, TiN Coated, Class of Fit: 2B, Right Hand Cutting Direction, 0.984 in Thread Length, 3.38 in Overall Length, 0.367 in Shank Diameter, 2.593 in Shank Length, Right Hand Flute Direction, Steel, Stainless Steel, Aluminum Alloys, Copper Alloys and Titanium Alloys Material Application, No Through Coolant
